graph LR
Input[Raw Text] --> Norm[1. Normalization]
Norm --> PreToken[2. Pre-tokenization]
PreToken --> Token[3. Tokenization]
Token --> Post[4. Post-processing]
Post --> Output[Sequence of IDs]
subgraph "Tokenization Pipeline"
Norm
PreToken
Token
Post
end
style Input fill:#f9f,stroke:#333,stroke-width:2px
style Output fill:#bbf,stroke:#333,stroke-width:2px
linkStyle default stroke:#000,stroke-width:2px;
Overview
This tutorial explores the process of converting raw text into tokens. We will delve into the mechanics of the WordPiece algorithm and demonstrate its implementation from scratch, first in Python and subsequently in Rust as a performance-oriented bonus.
Introduction
In our previous posts, we simplified tokenization by splitting text into words. However, this approach has limitations when dealing with rare words or out-of-vocabulary (OOV) tokens. To address these issues, we will explore a more sophisticated tokenization technique: WordPiece.
We will examine how the algorithm works and implement it from scratch in Python. As a bonus, we will also implement it in Rust to demonstrate how a lower-level language can provide a more efficient implementation.
Tokenization
Tokenizing is the process of converting text into a sequence of smaller pieces that are mapped to unique integers (input IDs). Tokenization is a multi-stage pipeline that typically includes:
- Normalization: Standardizing the text (e.g., lowercase normalization, removing accents).
- Pre-tokenization: Splitting the text into initial chunks (e.g., splitting by whitespace or punctuation).
- Tokenization: Applying a subword algorithm (e.g., BPE, WordPiece) to create subword tokens.
- Post-processing: Adding special tokens required by the model architecture (e.g.,
[CLS],[SEP], or<|endoftext|>).
Your tokenizing strategy directly impacts your model’s robustness and its ability to handle rare or OOV words.
The WordPiece Algorithm
WordPiece is a tokenization algorithm developed by Google and used in various natural language processing tasks, such as BERT. It works by breaking words down into subwords, which are then represented as tokens. This approach allows for better handling of out-of-vocabulary words, as new words can be represented by combining existing subword tokens.
The algorithm proceeds as follows: After normalization and pre-tokenization, each token is split into character-level pieces. The first character of a word is kept as is, while subsequent characters are prefixed with ## (e.g., “token” becomes t, ##o, ##k, ##e, ##n). We then count the frequencies of these individual tokens as well as the frequencies of their co-occurrences. Tokens are scored using the formula:
\[ score_{i, j} = \frac{freq(i, j)}{freq(i) \cdot freq(j)} \]
The algorithm iteratively merges the pair of tokens with the highest score. This process of counting and merging continues until the predefined vocabulary size is reached.
WordPiece in Python
Our Tokenizer class is responsible for tokenizing text using the WordPieceEncoder after the WordPieceTrainer has been trained on a given corpus. The tokenizer is initialized with a normalizer and a pre-tokenizer, along with classes for post-processing and encoding. We pass the classes themselves rather than pre-instantiated objects because the post-processing and encoding logic depends on the specific vocabulary generated during training.
The train method accepts a corpus and a trainer, which fits a vocabulary to the corpus and subsequently instantiates the post-processor and encoder classes using that vocabulary. We also provide encode and decode methods. The encode method transforms text into a tokenized representation (including IDs and offsets), while the decode method reconstructs the original text from those tokens.
import re
from collections import Counter, defaultdict
from tqdm import tqdm
from urllib import requestclass Tokenizer:
def __init__(self, normalizer=None, pre_tokenizer=None, post_processor_class=None, encoder_class=None):
self.token_to_id = {}
self.id_to_token = {}
self.normalizer = normalizer
self.pre_tokenizer = pre_tokenizer
self.post_processor_class = post_processor_class
self.encoder_class = encoder_class
self.post_processor = None
self.encoder = None
def train(self, corpus: list[str], trainer):
# 1. Apply normalization and pre-tokenization
words = []
for text in corpus:
normalized = self.normalizer(text) if self.normalizer else text
words.extend(self.pre_tokenizer(normalized) if self.pre_tokenizer else [normalized])
# 2. Fit the trainer
vocab = trainer.train(words)
# 3. Build mappings
self.token_to_id = {tok: i for i, tok in enumerate(vocab)}
self.id_to_token = {i: tok for tok, i in self.token_to_id.items()}
# 4. initialize the encoder and the post processor now that we have the mappings
if self.encoder_class:
self.encoder = self.encoder_class(self.token_to_id)
if self.post_processor_class:
self.post_processor = self.post_processor_class(self.token_to_id)
def encode(self, text: str):
if not self.token_to_id:
raise ValueError("Tokenizer has not been trained yet.")
normalized = self.normalizer(text)
pre_tokenized = self.pre_tokenizer(normalized)
tokens = []
ids = []
offsets = []
i = 0 # global character cursor
for pt in pre_tokenized:
start = normalized.find(pt, i)
end = start + len(pt)
sub_tokens, sub_ids, sub_offsets = self.encoder(pt)
# shift offsets into global space
sub_offsets = [(start + a, start + b) for (a, b) in sub_offsets]
tokens.extend(sub_tokens)
ids.extend(sub_ids)
offsets.extend(sub_offsets)
i = end
encoding = {
"ids": ids,
"tokens": tokens,
"offsets": offsets,
}
encoding = self.post_processor(encoding)
return encoding
def decode(self, ids: list[int], skip_special_tokens: bool = False) -> str:
if not self.id_to_token:
return ""
tokens = [self.id_to_token.get(i, "[UNK]") for i in ids]
if skip_special_tokens:
special = {"[PAD]", "[UNK]", "[CLS]", "[SEP]"}
tokens = [t for t in tokens if t not in special]
decoded_string = ""
for i, token in enumerate(tokens):
if token.startswith("##"):
# Subword: append directly to the previous token
decoded_string += token[2:]
else:
# New word: add a space if it's not the first token
if i > 0:
decoded_string += " "
decoded_string += token
# Remove spaces before punctuation
decoded_string = re.sub(r"\s+([.,!?;:])", r"\1", decoded_string)
# Remove spaces around apostrophes
decoded_string = re.sub(r"\s+'\s+", "'", decoded_string)
# Remove spaces around hyphens for compounds
decoded_string = re.sub(r"\s+-\s+", "-", decoded_string)
# Handle parentheses and brackets
decoded_string = re.sub(r"\(\s+", "(", decoded_string)
decoded_string = re.sub(r"\s+\)", ")", decoded_string)
decoded_string = re.sub(r"\s+\[", "[", decoded_string)
decoded_string = re.sub(r"\]\s+", "]", decoded_string)
# Standardize extra whitespaces
decoded_string = decoded_string.strip()
return decoded_stringFor simplicity, our normalization pipeline is implemented as a class that performs only lower-case transformation. Similarly, our pre-tokenizer splits the text into words and punctuation marks. We also define a post-processor that adds the special tokens expected by a BERT model, along with an attention mask and a special tokens mask to ensure special tokens are omitted from the loss calculation.
class LowercaseNormalizer:
def __call__(self, text: str) -> str:
return text.lower()
class BertPreTokenizer:
def __call__(self, text: str) -> list[str]:
return re.findall(r"\w+|[^\w\s]", text)
class BertPostProcessor:
def __init__(self, token_to_id):
self.token_to_id = token_to_id
def __call__(self, encoding: dict):
tokens = encoding["tokens"]
ids = encoding["ids"]
offsets = encoding["offsets"]
# single sequence BERT-style
tokens = ["[CLS]"] + tokens + ["[SEP]"]
ids = [self.token_to_id["[CLS]"]] + ids + [self.token_to_id["[SEP]"]]
offsets = [(0, 0)] + offsets + [(0, 0)]
special_tokens_mask = [1 if t in ("[CLS]", "[SEP]") else 0 for t in tokens]
attention_mask = [1] * len(tokens)
return {
"tokens": tokens,
"ids": ids,
"offsets": offsets,
"attention_mask": attention_mask,
"special_tokens_mask": special_tokens_mask,
}The WordPieceTrainer class, implemented below, handles the training process. It accepts a target vocabulary size, a minimum frequency threshold, and an optional list of special tokens. By applying the algorithm described above to a list of pre-tokenized words, the train method produces the final vocabulary.
class WordPieceTrainer:
def __init__(self, vocab_size: int, min_frequency: int = 2, special_tokens=None):
self.vocab_size = vocab_size
self.min_frequency = min_frequency
self.special_tokens = special_tokens or ["[PAD]", "[UNK]", "[CLS]", "[SEP]"]
def _init_word(self, word: str):
return [c if i == 0 else f"##{c}" for i, c in enumerate(word)]
def train(self, words: list[str]):
counts = Counter(words)
word_freqs = {" ".join(self._init_word(w)): freq for w, freq in counts.items()}
vocab = set(tok for w in word_freqs.keys() for tok in w.split())
max_merges = self.vocab_size - len(vocab)
with tqdm(total=max_merges, desc="Training WordPiece") as pbar:
while len(vocab) < self.vocab_size:
pair_freqs = defaultdict(int)
token_freqs = defaultdict(int)
# Count pairs
for word, freq in word_freqs.items():
tokens = word.split()
for i in range(len(tokens)):
token_freqs[tokens[i]] += freq
if i < len(tokens) - 1:
pair_freqs[(tokens[i], tokens[i+1])] += freq
best_pair = None
best_score = -1
# Find best pair
for (a, b), freq in pair_freqs.items():
if freq < self.min_frequency:
continue
score = freq / (token_freqs[a] * token_freqs[b])
if score > best_score:
best_score = score
best_pair = (a, b)
if not best_pair:
break
# Merge step
a, b = best_pair
target = f"{a} {b}"
replacement = a + b[2:] if b.startswith("##") else a + b
new_word_freqs = {}
for word, freq in word_freqs.items():
new_word = word.replace(target, replacement)
new_word_freqs[new_word] = freq
word_freqs = new_word_freqs
vocab.add(replacement)
pbar.update(1)
pbar.set_postfix({
"vocab": len(vocab),
"last_merge": replacement
})
if self.special_tokens:
base_vocab = sorted(vocab)[: self.vocab_size - len(self.special_tokens)]
vocab = self.special_tokens + base_vocab
return vocabThe WordPieceEncoder class utilizes the token_to_id mapping generated during the training process. Its __call__ method accepts a word and returns a tuple containing the subword tokens, their corresponding input IDs, and the character offsets that align each subword to its position in the original word.
class WordPieceEncoder:
def __init__(self, token_to_id):
self.token_to_id = token_to_id
def __call__(self, word: str):
tokens = []
ids = []
offsets = []
i = 0
while i < len(word):
match = None
end = len(word)
while end > i:
substr = word[i:end]
if i > 0:
substr = "##" + substr
if substr in self.token_to_id:
match = substr
break
end -= 1
if match is None:
unk_id = self.token_to_id["[UNK]"]
return ["[UNK]"], [unk_id], [(i, len(word))]
tokens.append(match)
ids.append(self.token_to_id[match])
offsets.append((i, end))
i = end
return tokens, ids, offsetsBelow is an example of putting it all together and fitting a tokenizer to a corpus.
url = "https://www.gutenberg.org/files/132/132-0.txt" # art of war book
with request.urlopen(url) as response:
art_of_war = []
for line in response:
if line.startswith(b"*** START OF") or line.startswith(b"*** END OF"):
continue
art_of_war.append(line.decode('utf-8').strip())# Define pipieline steps
norm = LowercaseNormalizer()
pre = BertPreTokenizer()
trainer = WordPieceTrainer(vocab_size=4_000)
# Init Tokenizer
tok = Tokenizer(norm, pre, BertPostProcessor, WordPieceEncoder)
# Train
tok.train(art_of_war, trainer)example_string = "Hello World!"
encoding = tok.encode(example_string)
encoding{'tokens': ['[CLS]', 'h', '##e', '##l', '##l', '##o', 'world', '!', '[SEP]'],
'ids': [2, 2703, 297, 577, 577, 747, 3960, 4, 3],
'offsets': [(0, 0),
(0, 1),
(1, 2),
(2, 3),
(3, 4),
(4, 5),
(6, 11),
(11, 12),
(0, 0)],
'attention_mask': [1, 1, 1, 1, 1, 1, 1, 1, 1],
'special_tokens_mask': [1, 0, 0, 0, 0, 0, 0, 0, 1]}tok.decode(encoding["ids"])'[CLS]hello world![SEP]'Bonus: Rust Implementation
The Python implementation above is excellent for understanding the algorithm, but it would be prohibitively slow for training on large-scale corpora. To address this, we can use PyO3, a library that provides Rust bindings for Python. This allows us to implement the computationally intensive training loop in Rust while maintaining a Python-friendly interface.
To begin, we initialize a new Rust library using cargo init --lib and name our package fast_wordpiece. We then add pyo3 as a dependency in our Cargo.toml.

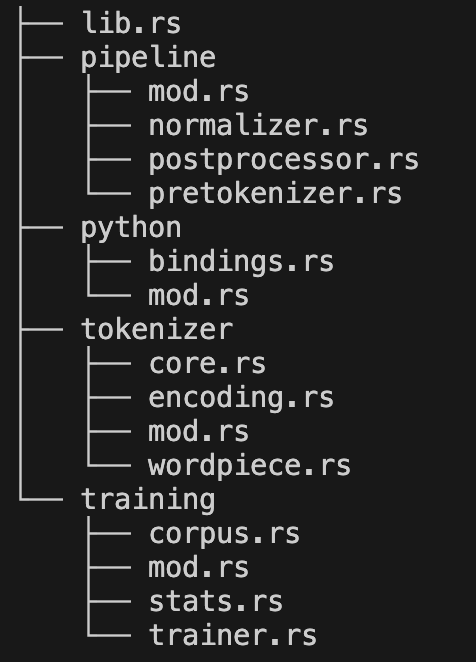

We will organize our implementation into a modular structure within the src directory:
lib.rs: The crate’s entry point. We use this file to declare our modules and define thePyTokenizerclass that is exported to Python via the#[pymodule]macro.pipelines/: Contains the logic for our normalization, pre-tokenization, and post-processing steps.python/: Defines the PyO3 bindings, mapping our Rust structures to Python-accessible classes.tokenizer/: Houses the core tokenizer logic, including structs for encoding outputs and various pre-tokenization strategies.training/: Implements the high-performance WordPiece training algorithm and its associated data structures.
The files are available for you to explore on the GitHub repository. We will look at how to set up the Python bindings and run it on the same art of war corpus as before.
The bindings are shown below. As we did in Python we import our rust implementation of the normalization, pretokinzation, and post-processing steps from our pipeline module. Our tokenizer struct lives in the tokenizer module and we import that as well. We then define a PyTokenizer class that is exported to Python via the #[pyclass] macro and we define methods using the #[pymethods] macro. We expose the train, encode, decode, and get_vocab methods so that they can be called from Python.
use std::collections::HashMap;
use pyo3::prelude::*;
use pyo3::types::{PyDict, PyList};
use crate::tokenizer::core::Tokenizer;
use crate::pipeline::*;
use crate::training::trainer::train_wordpiece_internal;
#[pyclass]
pub struct PyTokenizer {
tokenizer: Tokenizer,
}
#[pymethods]
impl PyTokenizer {
#[staticmethod]
pub fn train(
corpus: Bound<'_, PyList>,
vocab_size: usize,
min_frequency: u64,
) -> Self {
let mut word_counts: HashMap<String, u32> = HashMap::new();
let normalizer = LowercaseNormalizer;
let pretokenizer = BertPreTokenizer;
for item in corpus.iter() {
let text: &str = item.extract().unwrap();
let normalized = normalizer.normalize(text);
let tokens = pretokenizer.pretokenize(&normalized);
for token in tokens {
let count = word_counts.entry(token.text.clone()).or_insert(0);
*count += 1;
}
}
let (token_to_id, id_to_token, vocab) =
train_wordpiece_internal(word_counts, vocab_size, min_frequency);
let tokenizer = Tokenizer {
token_to_id: token_to_id,
id_to_token: id_to_token,
vocab: vocab,
normalizer: Box::new(LowercaseNormalizer),
pretokenizer: Box::new(BertPreTokenizer),
postprocessor: Box::new(BertPostProcessor),
unk_token: "[UNK]".to_string(),
cls_token: "[CLS]".to_string(),
sep_token: "[SEP]".to_string(),
pad_token: "[PAD]".to_string(),
};
Self { tokenizer }
}
pub fn encode(&self, py: Python, text: &str) -> PyObject {
let enc = self.tokenizer.encode(text);
let dict = PyDict::new(py);
dict.set_item("ids", &enc.ids).unwrap();
dict.set_item("tokens", &enc.tokens).unwrap();
dict.set_item("offsets", &enc.offsets).unwrap();
let attention_mask: Vec<u32> = enc.attention_mask.iter().map(|&x| x as u32).collect();
let special_tokens_mask: Vec<u32> = enc.special_tokens_mask.iter().map(|&x| x as u32).collect();
dict.set_item("attention_mask", attention_mask).unwrap();
dict.set_item("special_tokens_mask", special_tokens_mask).unwrap();
dict.into()
}
pub fn decode(&self, ids: Vec<u32>, skip_special_tokens: bool) -> String {
self.tokenizer.decode(ids, skip_special_tokens)
}
pub fn get_vocab<'py>(&self, py: Python<'py>) -> PyObject {
let dict = PyDict::new(py);
for (k, v) in &self.tokenizer.token_to_id {
dict.set_item(k, v).unwrap();
}
dict.into()
}
}Once we have our Rust implementation ready, we need to compile it into a shared library that can be used by Python. We can do this by using Maturin which is a tool for building and publishing Python packages that use Rust code. The command to build the package is: maturin develop. We can now import the PyTokenizer class in our Python script and use it as follows:
from fast_wordpiece import PyTokenizer
import time
start = time.time()
tok = PyTokenizer.train(art_of_war, 4_000, 2)
end = time.time()
print(f"\nRust training time: {end - start:.4f} seconds")
Rust training time: 2.8676 secondsThis is significantly faster than our Python implementation! Now let’s take a look at how to encode new text using the Rust tokenizer.
rust_encoded = tok.encode("Hello world!")
rust_encoded{'ids': [2, 54, 15, 2500, 13, 2711, 102, 3],
'tokens': ['[CLS]', 'h', '##e', '##ll', '##o', 'world', '!', '[SEP]'],
'offsets': [(0, 0),
(0, 1),
(1, 2),
(2, 4),
(4, 5),
(6, 11),
(11, 12),
(0, 0)],
'attention_mask': [1, 1, 1, 1, 1, 1, 1, 1],
'special_tokens_mask': [1, 0, 0, 0, 0, 0, 0, 1]}Finally, let’s decode our encoded tokens back into text.
tok.decode(rust_encoded["ids"], skip_special_tokens=True)'hello world!'With that we have a significantly faster WordPiece tokenizer! Pretty cool!! 2
